Mastering Virtual Memory in Operating Systems: A Beginner’s Guide🧠 What is Virtual Memory and How Does It Work?

Operating systems manage hardware and software resources, and one of their most important roles is memory management. A key concept here is Virtual Memory. Let's explore what it is and how it works in a beginner-friendly manner.


🔍 What is Virtual Memory?

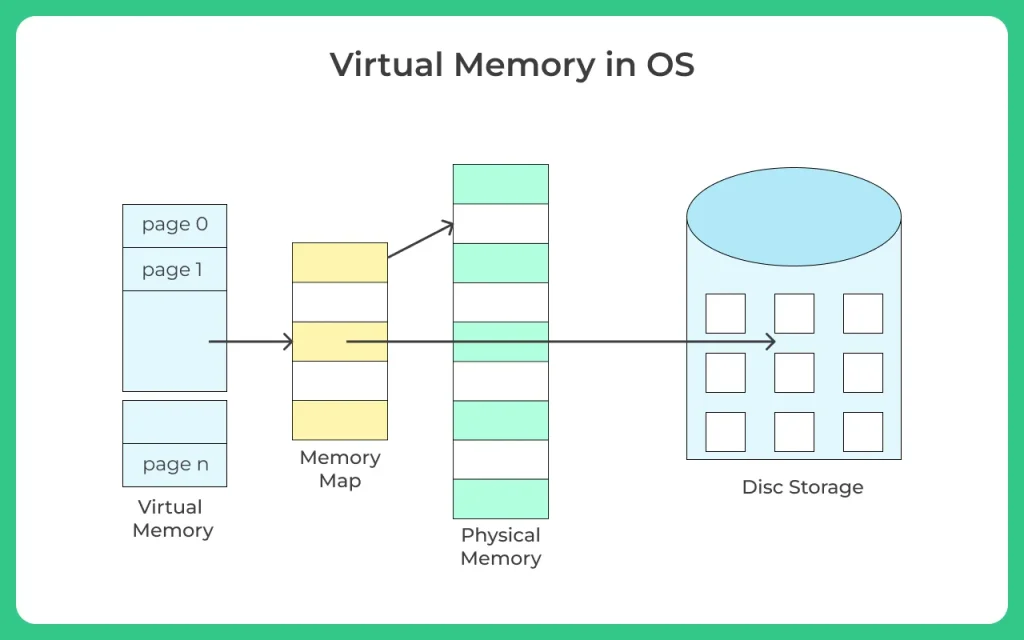

Virtual memory is a memory management technique used by operating systems to provide the illusion of a large, continuous memory space to applications, even if the physical RAM is smaller.

📌 Example:

Imagine your system has 4GB of RAM, but you’re running programs that need 6GB. Virtual memory lets your system "pretend" it has 6GB by using part of the hard disk (usually called the swap file or paging file) as additional memory.


💡 Why Do We Need Virtual Memory?

  • To run programs larger than physical RAM.

  • To isolate processes (each process gets its own virtual address space).

  • To allow multitasking.

  • To improve security and stability.


⚙️ How Does Virtual Memory Work?

Virtual memory involves several concepts:

1️⃣ Paging

Paging is a technique where memory is divided into fixed-size blocks:

  • Pages (in virtual memory)

  • Frames (in physical memory)

The OS keeps a page table that maps virtual pages to physical frames.

🧾 Example in Concept:

Virtual Address → Page Table → Physical Address

Let’s understand this with a simple code example in C:


💻 C Code Example: Simulating Virtual Memory with Paging

#include <stdio.h>
#define FRAME_SIZE 4
#define NUM_PAGES 4
#define NUM_FRAMES 3

int page_table[NUM_PAGES];
int memory[NUM_FRAMES];

void initialize() {
    for (int i = 0; i < NUM_PAGES; i++)
        page_table[i] = -1;  // -1 means not loaded
    for (int i = 0; i < NUM_FRAMES; i++)
        memory[i] = -1; // -1 means frame is empty
}

void load_page(int page_number) {
    int free_frame = -1;

    // Find an empty frame
    for (int i = 0; i < NUM_FRAMES; i++) {
        if (memory[i] == -1) {
            free_frame = i;
            break;
        }
    }

    if (free_frame == -1) {
        printf("No free frames, using FIFO to replace page 0.\n");
        free_frame = 0;  // FIFO replacement
    }

    memory[free_frame] = page_number;
    page_table[page_number] = free_frame;
    printf("Page %d loaded into frame %d.\n", page_number, free_frame);
}

int main() {
    initialize();

    load_page(0);
    load_page(1);
    load_page(2);
    load_page(3);  // This will trigger replacement

    printf("\nPage Table:\n");
    for (int i = 0; i < NUM_PAGES; i++) {
        printf("Page %d → Frame %d\n", i, page_table[i]);
    }

    return 0;
}

🔎 Explanation:

  • page_table keeps track of where each page is loaded.

  • memory simulates physical frames.

  • If no free frame is available, a page is replaced using FIFO (First-In-First-Out).


2️⃣ Address Translation

The CPU generates a virtual address. The OS translates it to a physical address using the page table.

📘 Formula:

Virtual Address = Page Number + Offset
Physical Address = Frame Number + Offset

This is done automatically by the Memory Management Unit (MMU) in hardware.


3️⃣ Demand Paging

In real-world OSes, not all pages are loaded into memory at once. Pages are loaded only when needed (on demand).

If a page is not in memory, a page fault occurs, and the OS loads the required page from disk.


📦 Benefits of Virtual Memory

Benefit Description
Efficient Use of RAM Only needed pages are kept in memory
Multitasking Each process gets its own memory space
Security Isolation between processes
Flexibility Can run large applications on limited memory

Drawbacks of Virtual Memory

Drawback Description
Slower than RAM Accessing disk is slower than accessing RAM
Thrashing Too many page faults can degrade performance

📚 Real-World Example

When you open many browser tabs or apps, some may be moved to disk (swap) temporarily. When you return to them, there might be a delay — this is the OS retrieving them from virtual memory.


🧪 Key Terms Recap

  • Page Table: Keeps mapping from virtual to physical addresses

  • Paging: Breaks memory into equal parts (pages and frames)

  • Swap File: Disk space used as an extension of RAM

  • Page Fault: When the required page is not in memory

  • MMU: Hardware that performs address translation


📝 Conclusion

Virtual memory is a brilliant abstraction that allows computers to run large programs efficiently, manage multiple processes, and keep systems stable and secure. With the help of paging, page tables, and swapping, virtual memory bridges the gap between limited physical memory and the growing demands of modern software.
